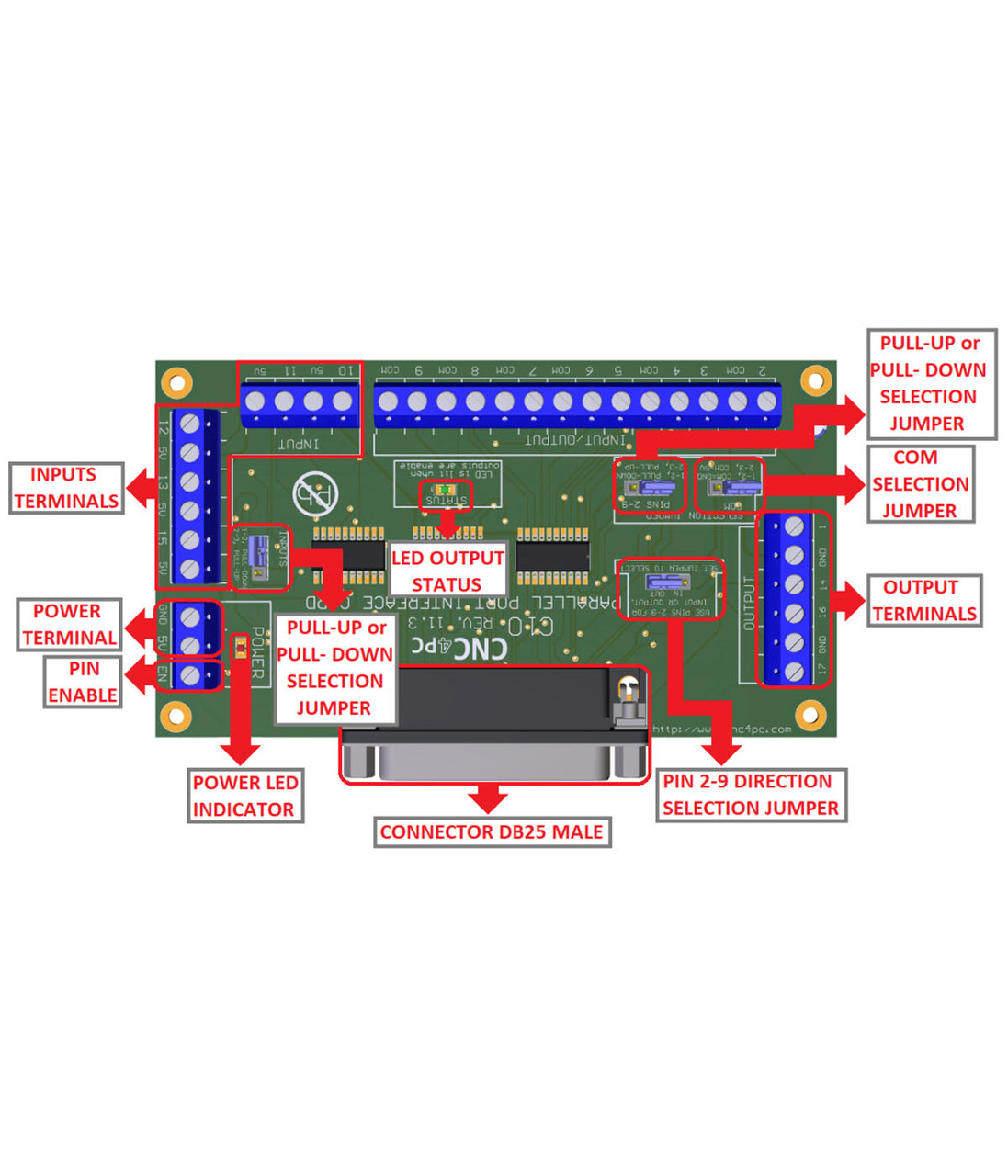

  • C10 Connections
  • C10 Dimensions
  • C10 Solid
  • C10 Top
  • C10

C10 - BI-DIRECTIONAL PARALLEL PORT CNC BREAKOUT BOARD

$ 23
SKU:
C10
Weight:
1.00 LBS
Quantity:

Product Description

FEATURES:

IEEE 1284 Standard compatible.
PULL-UP or PULL-DOWN selection for inputs.
Buffered inputs and outputs.
Bidirectional pins 2-9.
Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16, 17. Or 1, 14, 16, 17.
Input pins 10, 11, 12, 13, 15. Or 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15.
Input and output pins with close by ground or +5vdc connections
Input pins 10, 11, 12, 13, 15.
Input and output pins with close by ground or +5vdc connections
External Enable Pin (EN).
Works directly with popular CNC hardware and software.
All TTL 5VDC signals.
Screw-On connections for all terminals.
Status LEDs for enable.

Please note that we have currently updated the design of the board. We use the exact same circuits, just updated to newer and smaller componets, updated the manufacturing process to SMD and added and status LED, so now it has a green LED that will light when outputs are enabled.
