CBX 1.7 CNC Controller, 24V, 13.4A, Up To 282 Oz/In Torque 4 Axis

$ 437
SKU:
CBX1.7
Weight:
9.00 LBS
Availability:
Usually Ships within 24 hours
Minimum Purchase:
1 unit(s)
Maximum Purchase:
10 unit(s)
Quantity:

Product Description

Plug & Play Ready to go 4 Axis CNC Controller, ideal for Medium or Small Router or Small Mill among other applications.

Easy to Install Software, configured for Mach3, just download and install Easy Mode for Mach3 and plugins for motion controller and Mach3 XML configuration are setup automatic, just need to configure additionally the pitch of your specific machine and adjust direction as your preference and motor tuning for optimal performance.

You can easily find all this step by step instructions in our videos and tutorials section or in our YouTube channel.



Specs

 110 - 220 VAC Single Phase Input

NC (Normally Closed) Mechanical or Proximity sensor Limit Switches: X+, X -, Y+, Y - & Z

One 110 - 220 Spindle or Coolant Vacuum Relay output



Features

 · Full control for up to 4 stepper motors of NEMA 17, 23, 24, or 34 recommended for up to 282oz/in Torque

· Step & direction control

· 24 VDC supply voltage 13.4 Amp total

· Convenient individual setting for each axis

· E-Stop in front panel.

. Applications: CNC routers / engravers, CNC mills, CNC Cutters, X-Y tables, among others.



Warnings

 This product must be operated by an adult or under an adult supervision, goggles and other safety measures most be used and taken to avoid any accidents.



What's Inside

1 x CBX 1.7 CNC Controller Box.

1 x 3' Type B Ethernet Cable.

1 x 6' Parallel Priner Cable Male - Female.

1 x 6' 110 - 220 VAC Power Cable



How to Hook It Up

 To connect and initial configure your CBX 17 CNC Controller Box you must follow 5 simple steps:

You could also check configuration video in our website tutorials or YouTube.



 1. Connect motors cables to each Axis Motor and then to each Axis as labeled in panel of controller.

Make sure notches match.



2. Connect Limit Switch to Ethernet Cable and then to Ethernet connection in controller labeled "LIMIT".



3. Connect Spindle or Coolant and Vacuum to labeled AC output on controller panel.



4. Connect Parallel Printer Cable to Computer and then to input labeled "PC" on your Controller.



5. Finally Connect the 110 - 220 VAC power cables and you’re ready to go.



Now What? What's Next?



You must install Mach3 software and plug-in from Easy Mode Installation Software Downloadable in our Website before powering controller.

You can run mach3 in demo mode to configure and test your CNC Machine but it will only run up to 500 lines of G-code without a license.

See tutorials on how to buy and install license.



Now you are ready to power your controller and open CBX 1.7 profile in mach3 loader. (see video tutorial)



Make sure you have the E-Stop at hand while configuring mach3.



It is important to determine if you will be using any motor as a slave and configure it before trying to move any axis.

See video tutorials on How to Slave an Axis.

Now you should just go to the Settings tab and determine Units of Operation MM's or Inch and finally set the proper steps per units for each axis in same settings tab.

See tutorials on How to set Steps per Unit.



For any other setting instructions please check our video tutorials on our website or YouTube or contact us via e-mail.

or just search for cncbasis in YouTube.



Warranty

 30-day Money Back no questions ask.

Feedback is very appreciated but not necessary.



6 months on parts and labor.









CBX 1.7 CNC Control Box Sneak Peek - YouTube

Video will open in a new window
Using the eBay App? Paste link into a browser window:



Product Videos

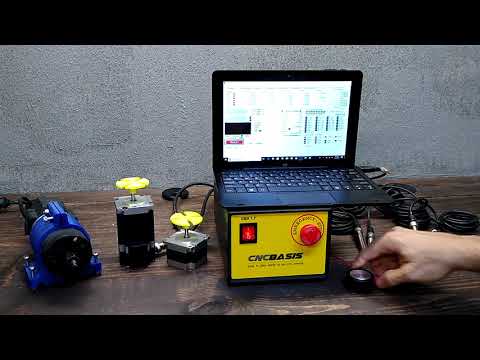

CBX 1.7 Sneak Peek 03:27
