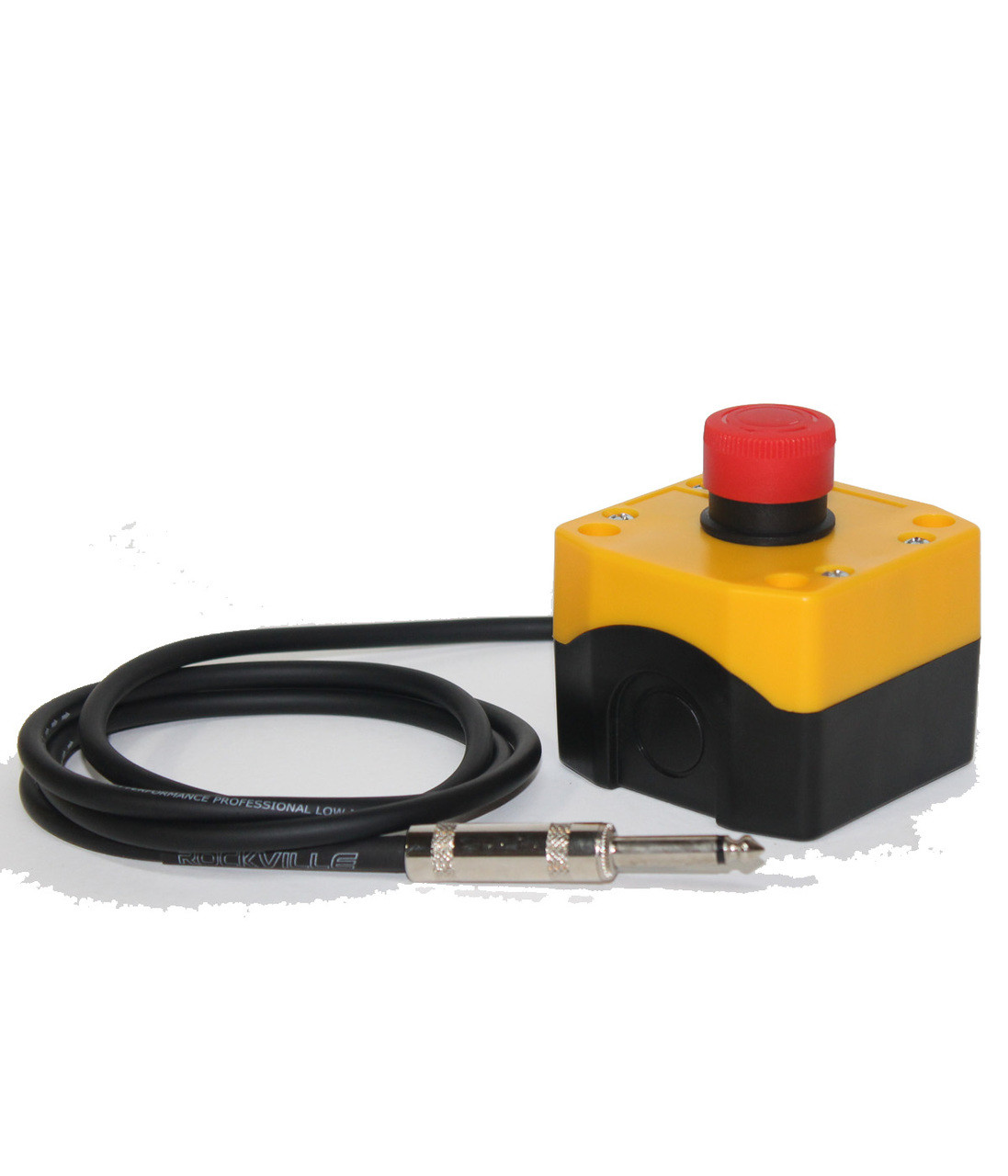

Emergency Stop - NC Twist Release Push Button E-Stop
Widely used in mechanical equipment.
Operation environmental condition
Air temperature around -25°C~ +70°C
Height above sea level = 2000m
Air comparative humidity =90%
Pollution degree 3
Protection level IP65
Main technical parameters:
Rated: AC-15 36V/10A 110V/10A 220V/5A 380V/2.7A 660V/1.8A
DC-13 24V/4A 48V/4A 110V/2A 220V/1A 440V/0.6A
Conventional thermal current 1th 10A
Insulation resistance =10mO
Resistance of electric shock =50mO
In this video we explain the steps you need to follow once you have your CBX 1.7 controller by CNC Basis connected to your machine. You must first determine if you are using any slaved axis. It is very common that the Y axis uses two motors, therefore usually the A axis is slaved to Y axis. You must also verify the directions your motors are running and make any changes if necessary. Then you must set the steps per unit for your machine, this may cause your motors to go slower, if so you can adjust velocity and acceleration in Motor Tuning. It is also very Important that you set proper units to Millimeters or Inches before you run a G-code.
CBX 1.7 Router...In this video we explain the steps you need to follow once you...
