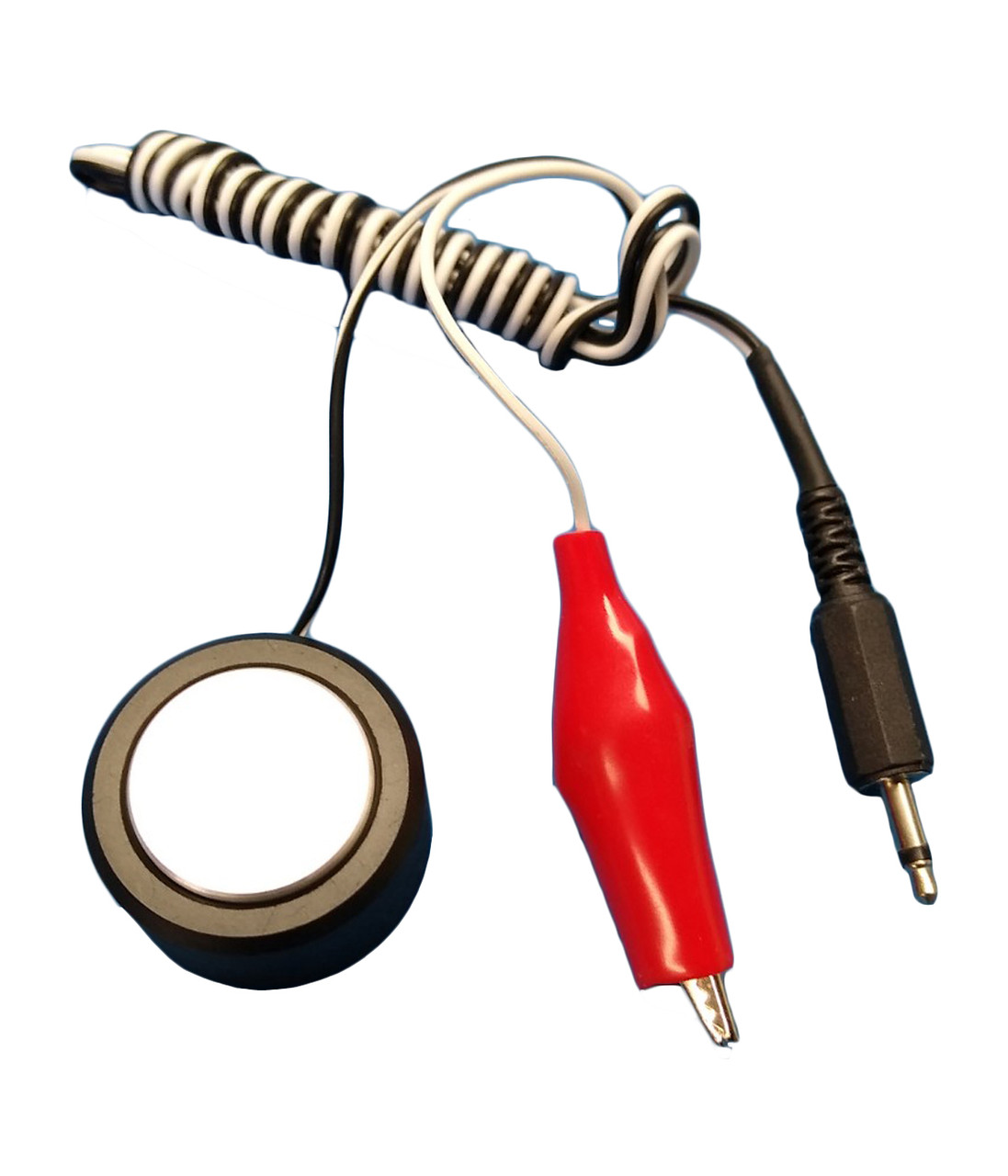

  • Probe Touch Plate with 3.5 Jack connector for CBX Controllers

Probe Touch Plate, Z-Axis Tool Zero

$ 11
SKU:
TPL
Weight:
0.20 LBS
Quantity:

Out of Stock

Product Description



Auto tool Zero Probe Touch Plate for Mach3 CNC Router Mill Engraving Machine Tools



Description:


Diameter:(Approx.) 35mm/1.38"

Height:(Approx.) 20mm/0.79"

Effective surface of the knife: 25mm diameter/0.98"

Cable length  4 feet, 1.2 meters





Bottom Insulation Knife Block
Includes alligator clips



Connection and configuration:

If connecting to a CBX controller by CNC Basis you should select Probe Touch Plate with 3.5 Jack connector option and plug it on the back of the controller "Probe".

If using Mach3 Screen by CNC Basis then the only thing you need to do is set "New Tool Height", please notice you could just type dimensions on "Height" DRO and hit enter but it will not recall Tool Height next time you open Mach3, this option is useful for any specific job that requires one time Tool Height.

No need to configure macros or anything else.



If using any other controller or breakout board then need to connect usually to GND and Pin 15 of Port 1 (or any of limit switch inputs) and configure it in Mach3 also need to configure Button Script in Operator of Mach3.

Please refer to control board operation manual or instructions as may be using 5V, 12V or 24V instead of GND as well as a different Pin or Port.
