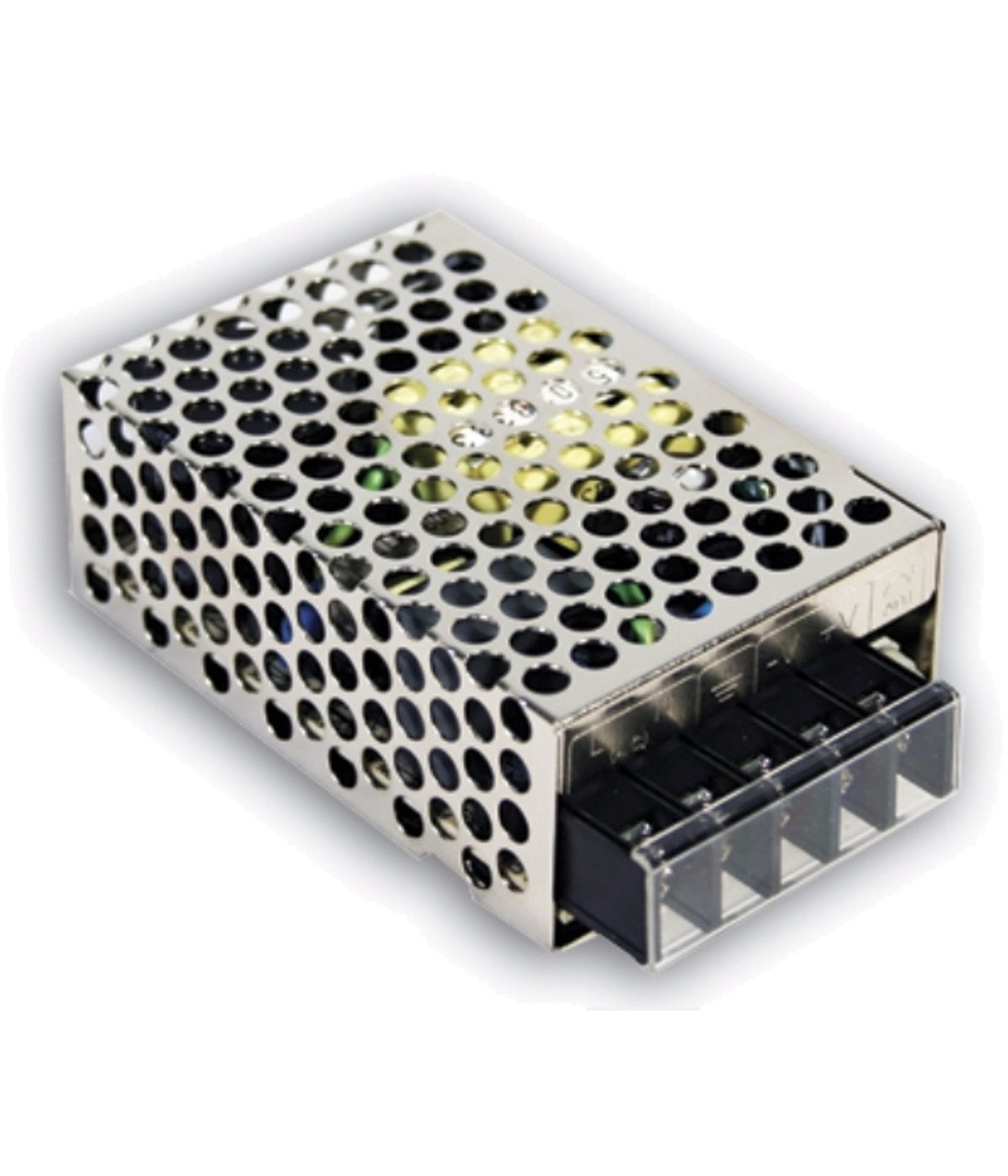

25W AC/DC ENCLOSED SWITCHING POWER SUPPLY
  • rs-25-5
25W AC/DC ENCLOSED SWITCHING POWER SUPPLY
Specs
  • rs-25-5
25W AC/DC ENCLOSED SWITCHING POWER SUPPLY
Size

RS-25-5 MEAN WELL

$ 9
SKU:
RS-25-5
Weight:
0.30 LBS
Quantity:

Out of Stock

Product Description

Specifications

Size (L x W x H) (inches): 3.1 x 2.0 x 1.1
Ripple and Noise (mV p-p): 80
Load Regulation: 1.0%
Line Regulation: 0.5%
Input: 88-264VAC @ 47-63Hz
5G Vibration
Able to withstand 300VAC surge input for 5 seconds
Short-circuit/overload/overvoltage protection
3-year warranty
Certifications: UL/CUL/TUV/CE/CB/CCC

Overview

  • No Load Power Consumption <0.5 W

  • Small Footprint with High Power Density

  • Short Circuit, Overload, and Over Voltage Protection Included

  • Meets EMS EN50082-2/EN61000-6-2 Heavy Industry Level (35~150 W)

  • Withstands 300 VAC Surge Input for 5 Seconds

  • High Operating Temperature — Up to 70°C

  • Withstands 5 G Vibration Test

  • 100% Full Load Burn In Tested

  • 3-Year Warranty

  • Safety Standards: UL60950-1, TÜV EN60950-1 Approved

  • Mean Time Before Failure: 309.7K hrs min.

  • AC Input Voltage Range: 85~264 VAC, 120~370 VDC

  • DC Adjustment Range: ±10% by Potentiometer for Single Output

  • Overload Protection: 110% - 180%

  • Over Voltage Protection: 115% - 135%, Shut Off

  • Over Temperature Protection: Shut Down O/P Voltage, Recovers Automatically After Temperature Goes Down

  • Connection: Terminal Block for Input and Output

  • Dimensions (L x W x H) (In): 3.07 x 2.00 x 1.38 Inch
