  • Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 1.26Nm(178.4oz.in)
Rated Current/phase: 2.8A
Voltage: 2.5V
Phase Resistance: 0.9ohms
Inductance: 2.5mH ± 20%(1KHz)

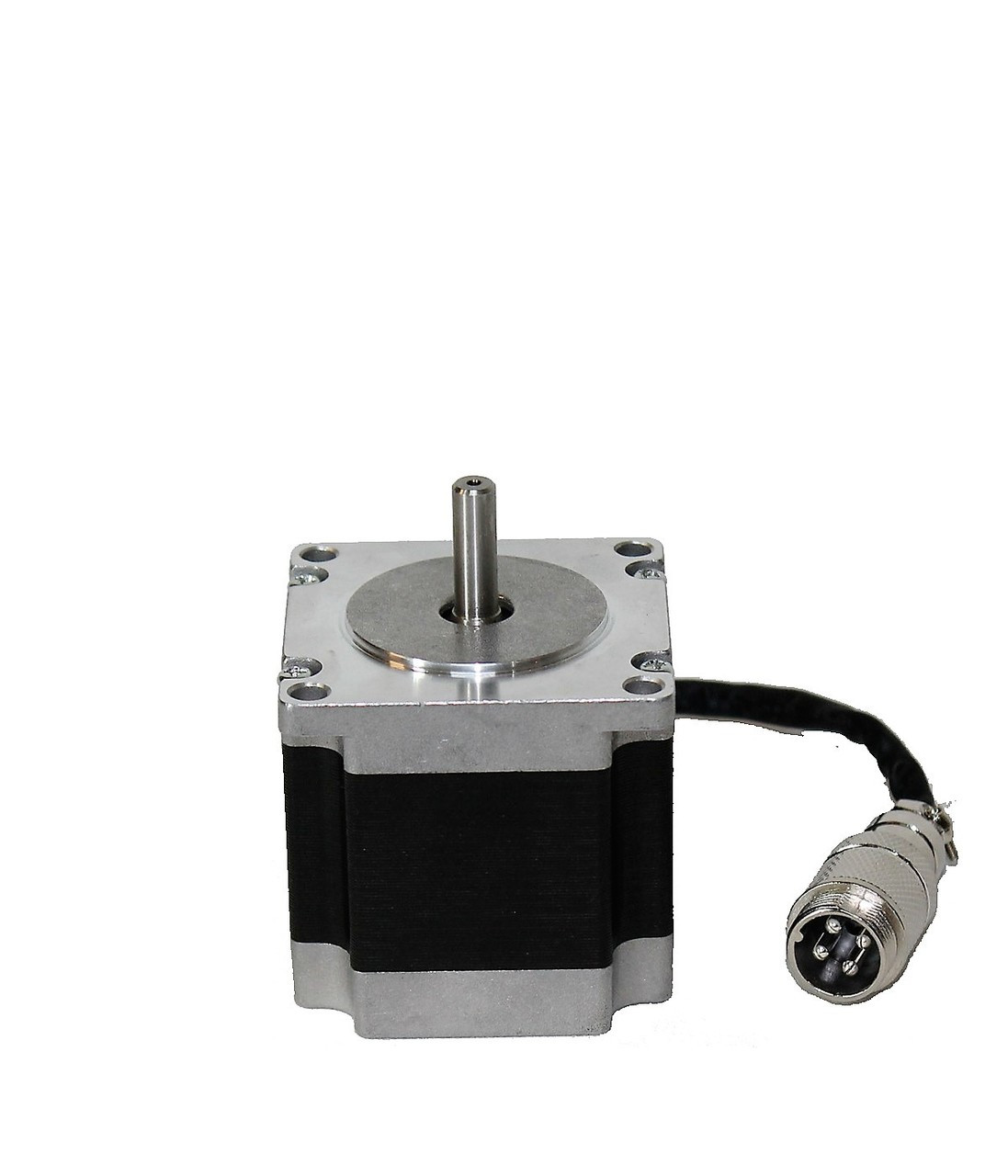

  • This is one of the most popular Nema 23 stepper motor, it with step angle 1.8deg and size 57x57x56mm. It has 4 wires, each phase draws 2.8A, with holding torque 1.26Nm (178.4oz.in).
  • Nema 23 178.4 oz/in stepper motor
  • Frame Size: 57 x 57mm
Body Length: 56mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
Number of Leads: 4
Lead Length: 300mm
Weight: 700g

Stepper Motor NEMA 23 178.4oz/In 1/4 SINGLE SHAFT

$ 22
Weight:
1.54 LBS
Quantity:

Product Description

178.4 oz In. Stepper Motor
1.8° /200 Steps Per Rev.
2.8 Amps Current Per Phase ( Bipolar Parallel)
4-wire  Bi-polar,  NEMA 23 Frame

Electrical Specification

  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 1.26Nm(178.4oz.in)
  • Rated Current/phase: 2.8A
  • Voltage: 2.5V
  • Phase Resistance: 0.9ohms
  • Inductance: 2.5mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 56mm
  • Shaft Diameter: Φ6.35mm
  • Shaft Length: 21mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 700g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
