  • 425 oz In. Stepper Motor
1.8° /200 Steps Per Rev.
4.2 Amps Current Per Phase ( Bipolar Parallel)
4-wire  Bi-polar,  NEMA 23 Frame
  • Nema 23 Stepper Motor 425oz/In 10mm SINGLE SHAFT
  • Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 3.0Nm(425oz.in)
Rated Current/phase: 4.2A
Voltage: 3.78V
Phase Resistance: 0.9ohms
Inductance: 3.8mH ± 20%(1KHz)
  • Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ10mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 400mm
Weight: 1.8kg
  • Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ10mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 400mm
Weight: 1.8kg

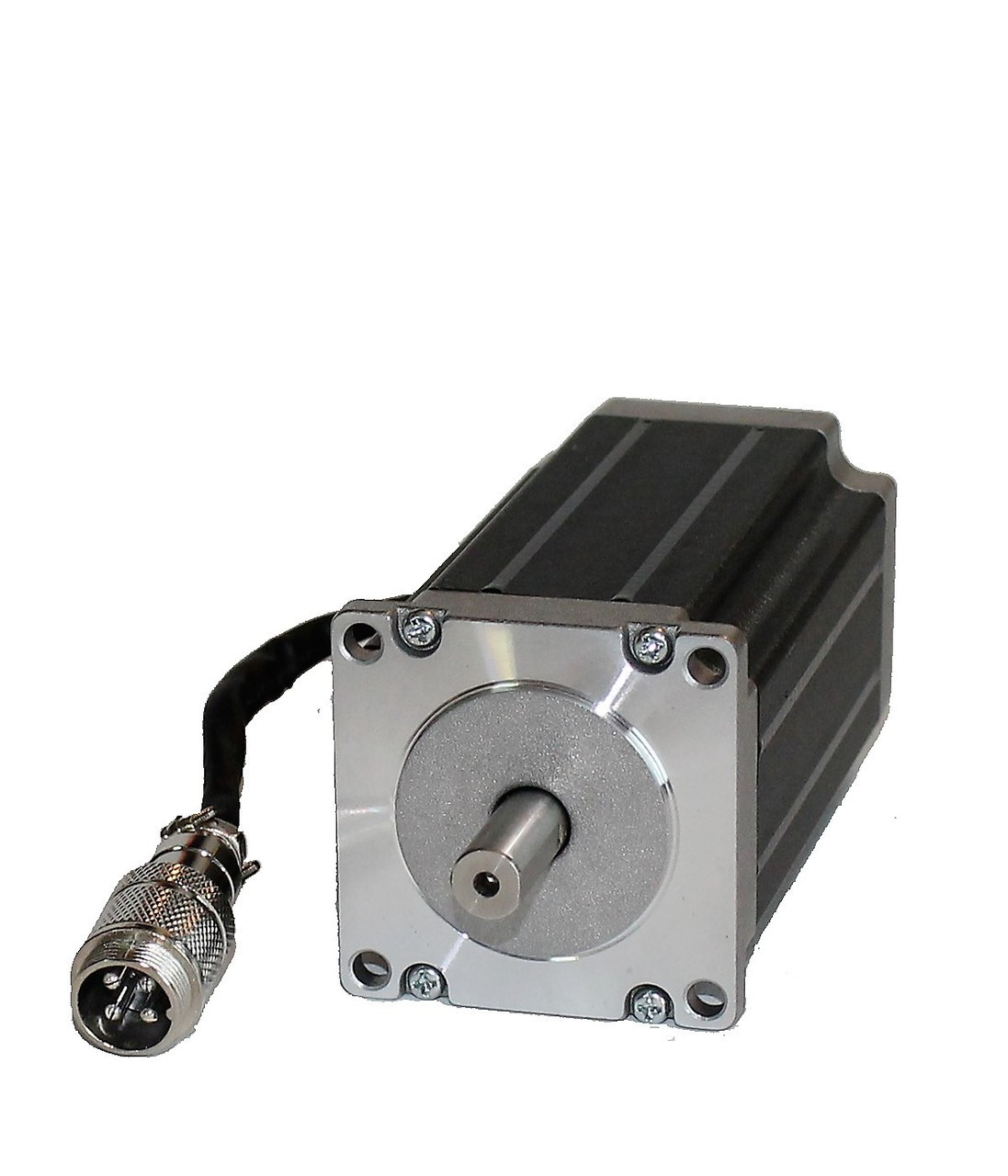

Stepper Motor NEMA 23 425oz/In 10mm SINGLE SHAFT

Weight:
4.00 LBS
Quantity:

Product Description

425 oz In. Stepper Motor
1.8° /200 Steps Per Rev.
4.2 Amps Current Per Phase ( Bipolar Parallel)
4-wire Bi-polar, NEMA 23 Frame



Electrical Specification

  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 3.0Nm(425oz.in)
  • Rated Current/phase: 4.2A
  • Voltage: 3.78V
  • Phase Resistance: 0.9ohms
  • Inductance: 3.8mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 113mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 1.8kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Product Reviews

Write Review

  1. stepper motor

    Posted by on Apr 22nd 2019

    good stepper motor, however shipping is too slow!
