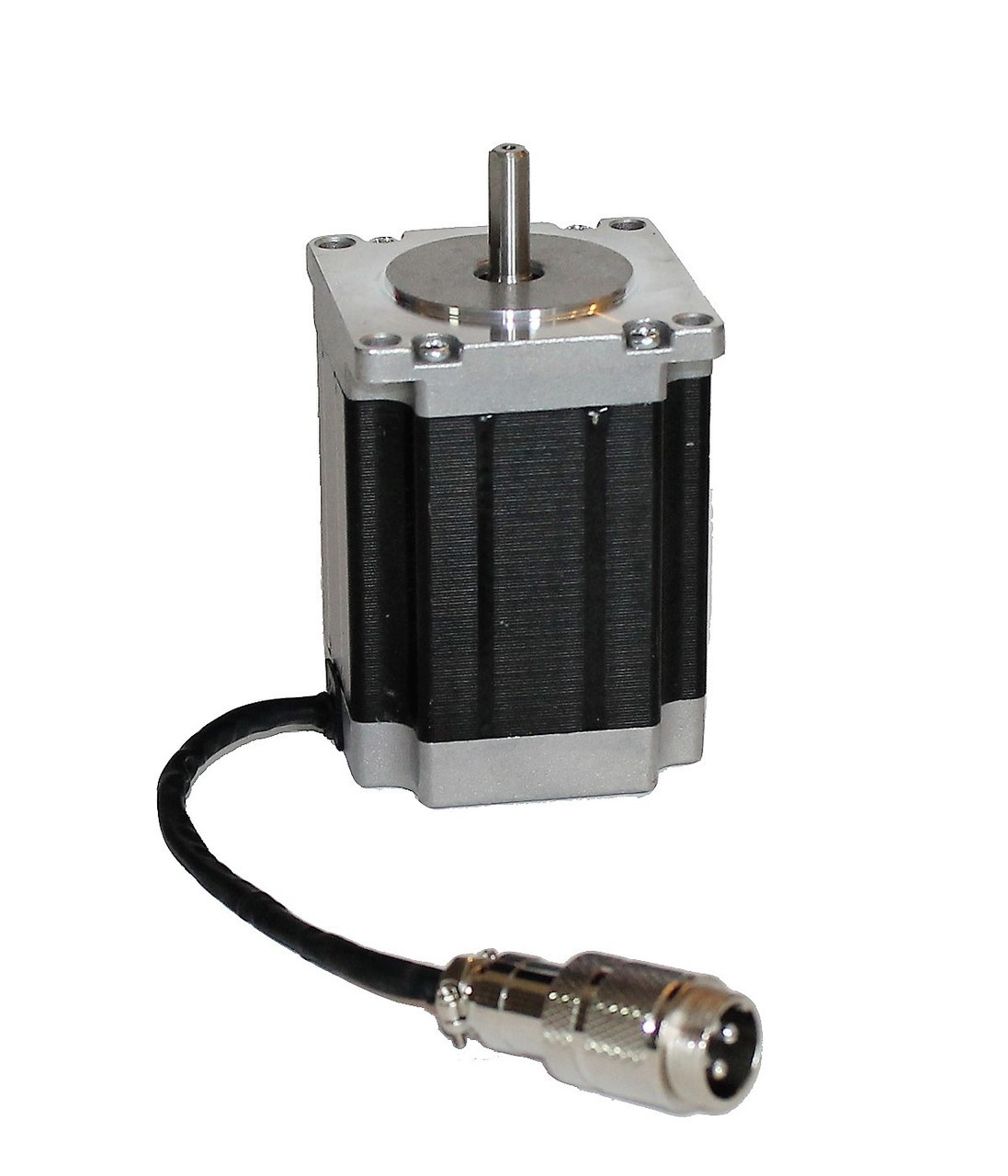

Stepper Motor NEMA 23 269oz/in 1/4 SINGLE SHAFT

269 oz In. Stepper Motor
1.8° /200 Steps Per Rev.
3 Amps Current Per Phase ( Bipolar Parallel)
4-wire  Bi-polar,  NEMA 23 Frame

 This is one of the most popular Nema 23 stepper motor.

Electrical Specification

• Motor Type: Bipolar Stepper
• Step Angle: 1.8 deg
• Holding Torque: 1.9Nm(269oz.in)
• Rated Current/phase: 3A
• Voltage: 3.36V
• Phase Resistance: 1.12ohms
• Inductance: 4.8mH ± 20%(1KHz)

Physical Specification

• Frame Size: 57 x 57mm
• Body Length: 76mm
• Shaft Diameter: Φ6.35mm
• Shaft Length: 21mm
• D-cut Length: 15mm
• Number of Leads: 4
• Lead Length: 500mm
• Weight: 1.2kg

Connection
