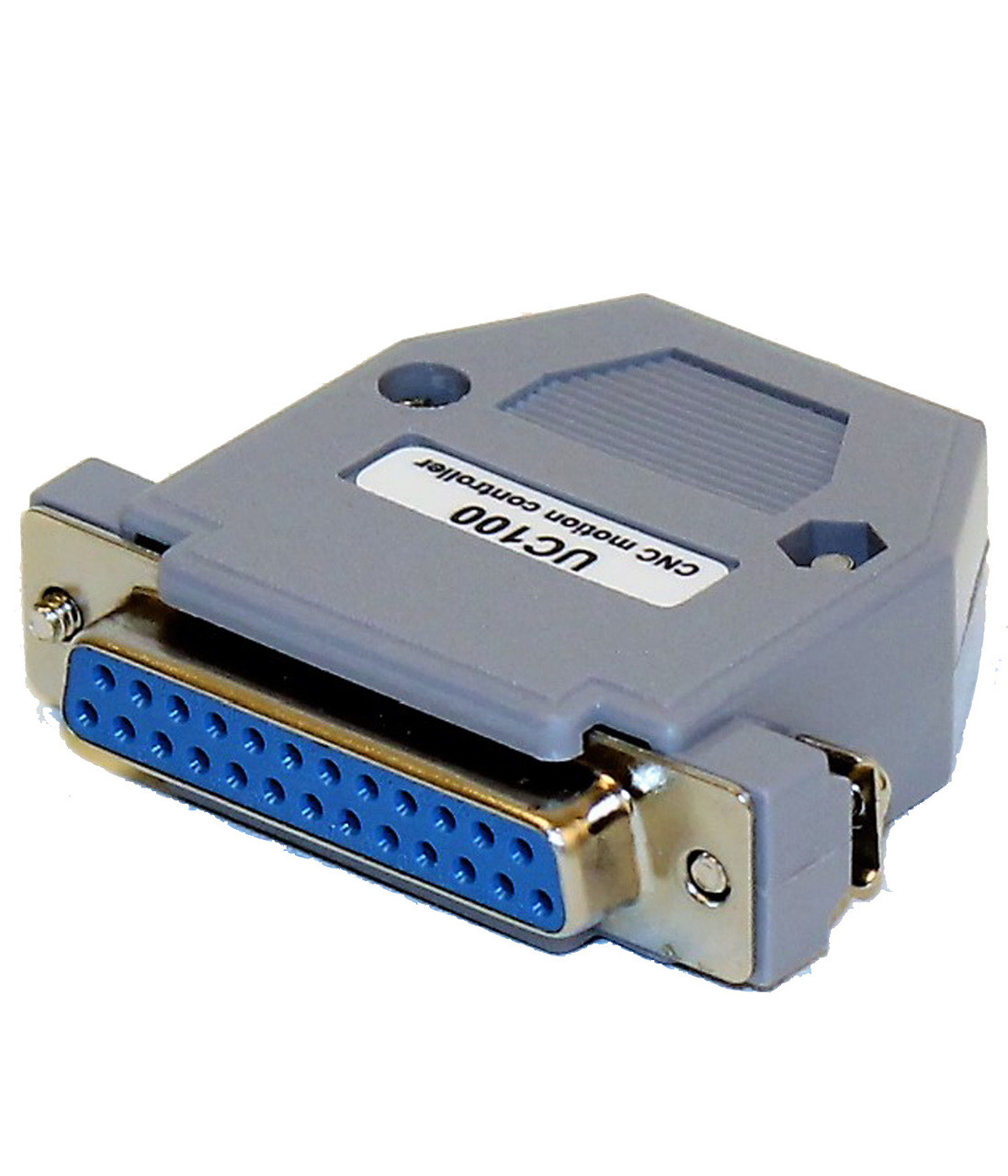

UC100 CNC USB Motion Controller for Mach3, Mach4 and UCCNC Software, USB to Parallel, Includes Gender Changer

- Motion control on up to 6-axis (X, Y, Z, A, B, C).

- Configurable maximum stepping frequency, the options are 25kHz(with 20usec pulse length), 50kHz(with 10usec pulse length), 100kHz(with 5usec pulse length).

- On the fly configurable 12 pieces of 5Volt (TTL level) buffered outputs. The current sink/source capability is 20mA max. per output.

- On the fly configurable 5 pieces of 5V (TTL level) limit triggered and filtered inputs. The input internal pullup resistance to 5Volts is 4.7kOhms.

- About 1 second long communication buffer.

- 100% LPT port compatible pinout.

- Includes 6' (1.8m) USB to mini USB cable

- Also includes a DB25 gender changer, so it connects to Male or Female DB25 connectors.

Supported Mach3 functions:

 Jog.

 Reference inputs.

 E-stop input.

 Soft limits.

 Limit switch inputs.

 Limits override.

 Index input (extended function supports multi slot spindle sensors)

 Spindle speed PWM control output.

 Step and direction spindle control output.

 Spindle and coolant relay control.

 Charge pump safety signal output (configurable to active/inactive when in E-stop).

 Charge pump adjustable frequency (12.50kHz in normal or 5kHz in laser mode).

 All signals configurable to active High/Low.

 General purpose I/O signals handling.

 Offline mode.

 All MPGs and encoders support. (2pcs maximum one time)

 Slave axis.

 Backlash compensation.

 Digit/probe input.

 THC control inputs.

UC100 Pinout:

DOWNLOADS

- Product Manual

- UCx00 automatic installer application for Mach3 and Mach4

 Note that links could be removed due to Amazon or eBay policy, please contact us for Product Manual or Installer.
